ZuordnungFilter » InLineFilter + Fritten
ArtikelnummerASI 850-1316HP

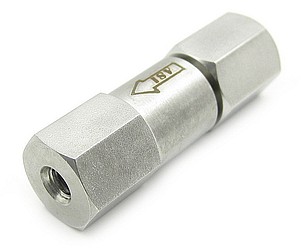

BezeichnungHigh Capacity In-Line 0.2 micron Filter, High Pressure Assembly
BeschreibungThis filter features a clean-swept internal volume and a large 2.2 cm² filter area that will provide a long service life. We guaranty the specified pressure rating of High Pressure Assemblies for parts originally assembled at ASI.
0.2 micron, 0.5 micron and 2 micron replacement filter cartridges are all interchangeable.
Frit Diameter: 0.170” (4,3 mm),
Cartridge Length: 0.64” (16,3 mm),
Flange Thickness: 0.040” (10,2 mm)
Ersatz-Kartusche 0,2µm Porengröße ASI 850-1326
MaterialEdelstahl
TypFilterkartusche in Gehäuse
Porengröße0,2 µm
Fritten-Ø4,4 mm (0,173)
Frittenvolumen (Totvolumen)89 µl
Druck bis1034 bar (15.000 psi)
Gewinde-Anschluss10-32 konisch
HerstellerASI
AbbildungenHigh Capacity In-Line 0.2 micron Filter High Pressure AssemblyHigh Capacity In-Line 0.2 micron Filter High Pressure AssemblyHigh Capacity In-Line 0.2 micron Filter High Pressure Assembly
GebindegrößeStück
Preis
184,00 €

alle Preise zzgl. MwSt und Versand
