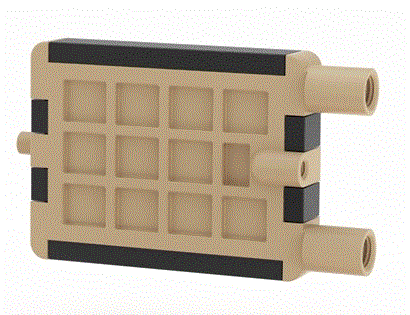

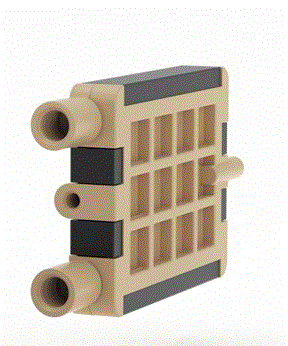

TECHLAB - EGT 9000-2071 Film Degasser Chamber / Entgaser- Vakuumkammer

Zuordnung	Entgaser » Entgaser Ersatzteile
Artikelnummer	EGT 9000-2071
Bezeichnung	Film Degasser Chamber / Entgaser- Vakuumkammer
Beschreibung	Neues Design mit flacher Membrane statt Schlauch: - geringerer Druckverlust bei gleichzeitig deutlich höherer Entgasungsleistung, daher für analyische und semi-präp Anwendungen geeignet (bis zu 10 ml/min) - gerigere Menge an Teflon (PFAS) als bei konventionellen Entgaserkammern mit Schläuchen - metallfrei - universelle Chemikalienbeständigkeit, geeignet für biokompatible Anwendungen, klassische HPLC bis zu GPC. - Anschluss-Gewinde: 1/4-28 UNF - NICHT austauschbar mit bisherigen Entgaserkammern mit internen Schläuchen Mindestbestellmenge: 5 Stück Engineered with a unique flow channel design and significantly shorter fluid and membrane diffusion paths, the 9000-2071 is a 500 μL degassing chamber in a flat film format with ¼-28 flat bottom liquid ports. The fluoropolymer membrane & PEEK chamber is designed to degas solvents at the highest performance levels available for analytical scale HPLC systems. In a small form factor, with reinforced Teflon™ AF film; this degassing chamber has a metal free flow path and universal solvent compatibility, which includes HFIP and Hexane. The sleek, patented chamber design enables low flow restriction when compared to the lumen based chambers. Lower flow restriction than tubing based degassers. Non-metallic flow path, which enables universal application of a single type of degasser to multiple types of HPLC systems. Small form factor with no internal tubing fittings to leak. Lowest vacuum volume to limit initial pervaporation of volatiles. Universal coverage of all flow rate ranges to as great as 10 mL/min or more depending on style of HPLC system. Universal solvent compatibility, except for solvents known to adversely affect Teflon™ AF (see solvent compatibility guide). Solvent flush-out similar to tubing style degassers. Flow restriction is constant regardless of applied vacuum. Lower environmental impact: High pressure vacuum degassing reduces or eliminates solvent vapor discharge into the laboratory atmosphere. Couple the film degassing chamber with our patent-pending algorithm for constant performance and your system will achieve the highest HPLC degassing efficiency with universal solvent compatibility. The methodology allows you to select a fixed-efficiency of degassing for any HPLC separation method. This enables consistent operation at higher applied vacuum pressures, while reducing pervaporation and associated mobile phase changes. Passende Vakuumpumpe: EGT 9000-2090
Hersteller	Systec
Typ	Vakuumkammer
Kammervolumen	500 µl
Abbildungen
Gebindegröße	Stück
Preis	auf Anfrage
